Vandal-Proof Dome Color Camera
700 TV Lines (Ultra higher resolution standard)
1/3 " Color High Resolution CCD Sensor
TV system: PAL (resolution-976x582)
Lens: 3.6mm Fixed lens
Min illumination: 0.1Lux
Dimension: 117mm dia x 92mm
Weight: 470 gram
Power source:  (12V DC)
Power Comsumption: 120mA



        MYWIFICAM
             YOUR SECURITY OWN BUSINESS
OUR PRODUCTS

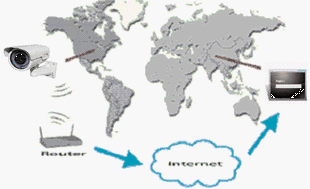

A Network IP Camera is a stand-alone device which allows a user to view live, full motion video from anywhere on a computer network, even over the Internet, using a standard web-browser. Businesses are increasingly finding this a more economical alternative to high-priced Closed Circuit TV (CCTV) systems.

And the use of existing LAN wiring greatly simplifies installation and eliminates the expense of installing additional cabling. Features such as motion sensing with email notification, simultaneous user login, and FTP upload capability further differentiate the device from current video technology.


Infra Red Dome Camera
(Day and Night Functionality)
540 TV Lines (much higher resolution than normal standard)
1/3 " Color SONY CCD Chipset
TV system: PAL
DSP CCD sensor
3.6 mm lens
Minimum illumination: 0.8Lux/F1.2, 0Lux(IR On)
White balance: Automatic white balance
High-density  24  Infra-red LEDs
Power source (12V DC)
Power Comsumption: 120mA(IR Off), 350mA (IR On)




Wired Hidden/Spy Camera
(Wall Clock Functionality)
420 TV Lines.
TV system (PAL).
3.6 mm lens.
Effective Pixels: 500(H) x 582(V)
Auto white balance.
Min illumination: 0.5 Lux F1.2
Power source (12V DC)





Wired Hidden/Spy Camera
(Radio cum Clock Functionality)
1/3  inches color SONY CCD Chipset
420 TV Lines.
TV system (PAL).
3.6 mm lens.
Effective Pixels: 500(H) x 582(V)
Auto white balance.
Min illumination: 0.5 Lux F1.2
Power source (12V DC)







Wired Hidden/Spy Camera
(Wooden Radio cum Clock Functionality)
1/3  inches color SONY CCD Chipset
420 TV Lines.
TV system (PAL).
3.6 mm lens.
Effective Pixels: 500(H) x 582(V)
Auto white balance.
vMin illumination: 0.5 Lux F1.2
Power source (12V DC)









Wired Hidden/Spy Camera
(Square Mirror Functionality)
Awarded Gold Medal as Invention of the Year by the British invention show
This concealed camera is covered by a special material which can not be seen
through by human eyes, yet can be seen through by camera.
520 TV Lines (much higher resolution than normal standard)
Adjustable view angle, 1/3" Sony CCD Chipset,
3.6 mm lens.
It can be used for high level security applications or concealed monitoring applications.
Suitable applications includes: bank, museum, detective, spy and home security.
Camera is part of the overall Standalone or Internet Based DVR system.
Power source (12V DC)










420 TV Lines.
TV system (PAL).
3.6 mm lens.
Effective Pixels: 500(H) x 582(V)
Auto white balance.
Camera is part of the overall Standalone or
Internet Based DVR system.
Power source (12 DC, 150mA).











Wired Hidden/Spy Camera
(Mock-up Motion Detector)
1/3" Sony color CCD chipset.
420 TV Lines.
TV system (PAL).
3.6 mm lens.
Effective Pixels: 500(H) x 582(V)
Min illumination: 0.5 Lux/F2
Auto white balance.
Camera is part of the overall Standalone or
Internet Based DVR system.
Power source (12V DC)













Super HAD CCD Infra Red Day/Night Camera
(Weather proof functionality)
540 TV Lines (much higher resolution than normal standard)
1/3" SONY CCD Chipset
TV system: PAL
DSP CCD sensor
3.6 mm lens
Minimum illumination: 0.5Lux/F1.2, 0Lux(IR On)
White balance: Automatic white balance
High-density  36  Infra-red LEDs
Operate by 12V DC power supply
Power Comsumption: 120mA(IR Off), 400mA (IR On)
Power source (12V DC)















High resolution Day/Night Samsung camera
1/3 Sony Super HAD CCD Chipset
High resolution of 530 TV Lines (much higher resolution than normal standard)
Total Pixels 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V) Video Output
Min. Illumination 0.3 Lux(F1.2) (Color) / 0.002 Lux (Sens-up)
Day&Night Off / Auto
White Balance ATW / AWC / Manual selectable (1800K ~ 10,500K)
OSD Built-in
SSNR On / Off (Noise reduction)
IRIS Control DC / VIDEO
Lens Mount C / CS Mount (Screw lock)
Operating Temperature -10C ~ +50C
Operating Humidity 30% ~ 90% RH
Dimension 58(W) x 52(H) x 121(D)mm
Weight 290g
Power source (12V DC)

















3-inch Mini High Speed Dome
500TVL (Color)  570TVL(B/W)
10 optical Zoom,10 digital Zoom
Day& Night function
Mode: Auto-focus/Manual focus/Semi-Auto Focus
Support 127 presets,8 group,4 pattern, 4 alarm
Support RS-485 protocol (Pelco-D, Pelco-P)
Support multi-installation (ceiling amount, wall amount)
Power source (12V DC)
Installation and configuration.


















Pan Tilt and Zoom (PTZ) camera 3-D Keyboard Function
RS-485 communication protocol, control distance is 1200m
Electrical consideration
Input voltage: 9V-12V AC/DC
Rated power: 2.5W
Communication's consideration
Communication interface: RS485 x1,  RS422 x1,
RS232x 1, RJ45
Communication frequency: 2400Bps , 4800Bps, 9600Bps
Communication distance: 1.2KM(RS485 and Rs422 can achieve it)
Operational environment:
Operating temperature: 0 degree -40 degree
Relative humidity: less than 90%



















Internet Based Digital Video Recorder
Remote viewing/recording function
Multiplex design-play & record same time
Come with Remote Control device
Record time up to 4 weeks on 500GB HDD
Upgrade firmware by USB flash & Etherent
solution trigger record function
Support Remote Control and Live view
Security password protection
Standard 500 GB hard disk storage
USB Interface version 1.1



















Internet Protocol (IP) Camera
Supports both ActiveX Control/Java Applet for Internet Explorer.
Remote Access from Web Browser for Live Image Viewing
Supports TCP/IP
SMTP e-mail, HTTP Password protection
Supports 10/100Mbps network
Image capturing, and video recording (Win 98/ME/2000/XP)
E-mail Notification with Captured Images Broad
Range of applications for monitoring homes,offices, bank s, hospitals, and a variety of private and public monitoring.




















HOME







ABOUT US







OUR SERVICES







OUR PRODUCTS







OUR CLIENTS







CONTACT US







OUR STRENGTHS







WIFI TECHNOLOGY







BIOMETRIC DOOR LOCK







BROAD BAND NETWORK







ORDER FORM







LIVE DEMO







PRODUCT FEATURES







Our Comittments

We offer a solution for the majority of applications and try to suit different levels of  financial budgets available. However, while pursuing this aim, we will not  compromise on system reliability and our high quality standards. You are assured of our best commitments.



Made In / Country of Origin - Korea
Fingerprint access (100 fingerprints)
PIN access (4-12 digits number combination)
Emergency Mechanical bypass key access (Last Resort)
Indoor Wireless Remote Controller access (Optional)
Digital Touch Keypad with Random Codes
Forced Locking and Relocking
Automatical / Manual locking modes
Burglar alarm & Fire detection sensor
Emergency external battery terminal
Black Color
Material is Zinc Alloy and ABS plastics
Dimension is 81.3 x 318 x 75 (mm: WxHxD) - Outside
Dimension is 79 x 290 x 80.3 (mm: WxHxD) - Inside
Door Depth is 40-45 mm
Humidity is 90%
Power usage is DC6 voltage (Alkaline AA, LR6 Battery 8 pieces)
Wireless Remote Controller access range is about 100 metres
Battery duration is subjective to usage,  about 10 months (10 times/day)



Made In / Country of Origin - Korea
Fingerprint access (20 fingerprints)
PIN access (4-12 digits number combination)
Digital Touch Keypad with Random Codes
Forced Locking and Relocking
Automatical / Manual locking modes
Burglar alarm & Fire detection sensor
Emergency external battery terminal
Black Color
Material is Zinc Alloy and ABS plastics
Dimension: 19x64x162 mm(WxHxD) - Outside
Dimension: 7x85x158 mm(WxHxD) - Inside
Door Depth: 40~50mm (1.57~1.97 inch)
Power: DC6 voltage (Alkaline AA, LR6 Battery 4 pieces)
Battery duration: subjective about 10 mths (10 times/day)
